Quickly configure and customize 3-P Initiation Board parameters for the specific task — activation modes, timers, sensors, and more.
1 / 4
The configurator allows you to quickly configure and combine activation modes, making it possible to use a single board for a wide range of combat tasks.

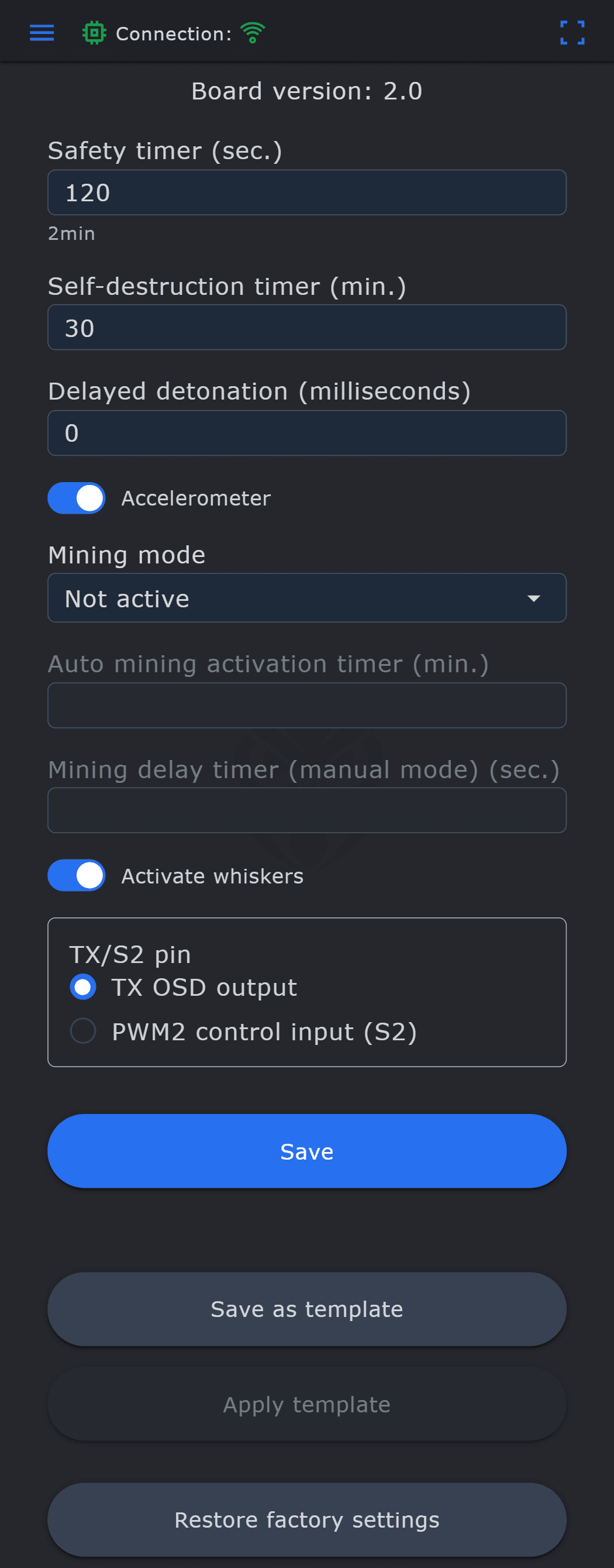

Configurable Parameters
Safety timer — delay after safety pin removal during which the board will not react to initiation events.
Self-destruct timer — time after entering ARM state after which self-destruct will occur.
5V/S2 pin — select the pin function: second PWM control channel or board status output to OSD via UART.
Delayed detonation — detonation delay after an initiation event occurs.
Accelerometer — enable or disable impact detection by the board's built-in accelerometer.
Activate whiskers — enable or disable whisker-type sensor pins.
Mining mode — use the drone as a mine that detonates on flip-over or sudden movement at a certain speed.
Self-destruct on low battery — when enabled, self-destruct triggers at critically low battery level instead of after a set time interval. Mining mode only.
Auto-mining activation timer — time after which the board in mining mode begins responding to minimal overloads or flip-overs. Automatic mining mode only.
Mining delay timer — delay after enabling mining mode from the controller during which the board ignores flip-overs and sudden movements.

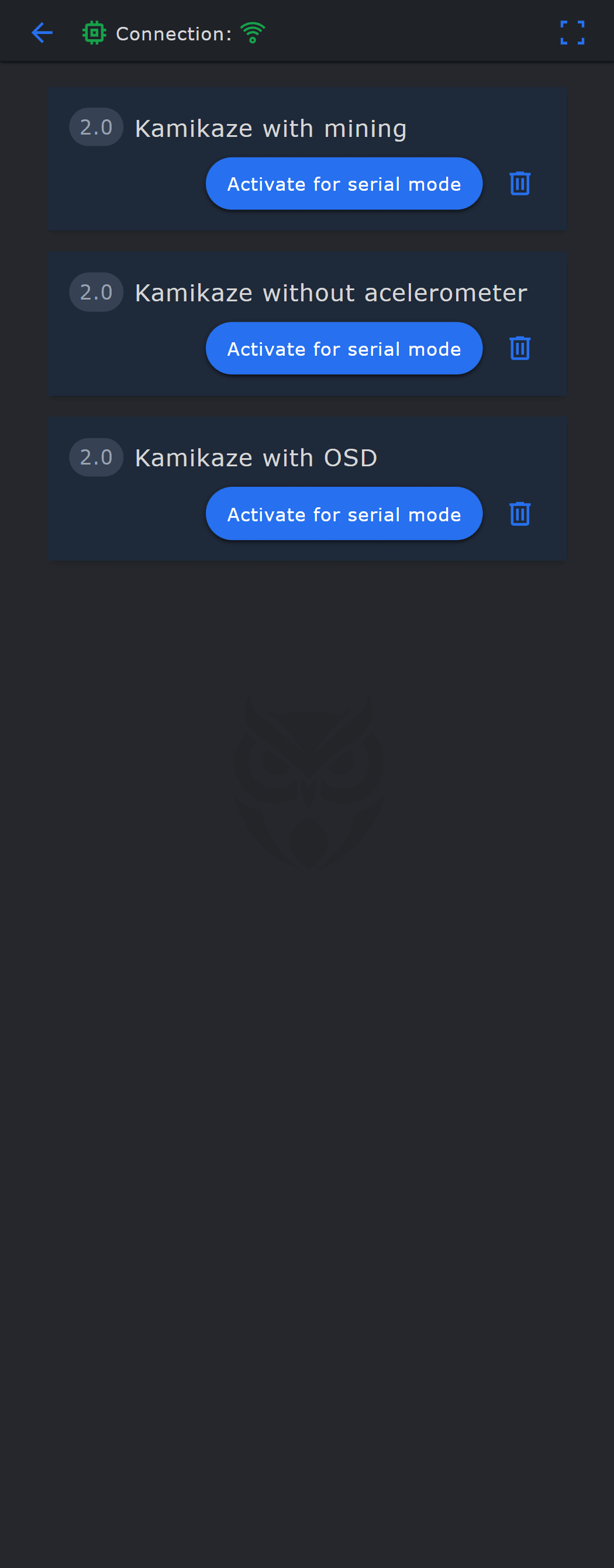

Configuration Templates
The configurator also allows creating configuration templates. Save a specific board's settings as a template and apply it to other boards to speed up configuration.
